Xinxin Panel
In Fastlink, we develop our panel product systems based on the highest standards. We also provide guidance and references for the design, engineering construction and installing panel system;
Technical description:
"Thickness of outer steel sheet"
0.5-0.8mm thickness of hot dipped galvanized sheets, hot dipped aluminum-zinc sheets or 0.8-1.0mm thickness of aluminum sheets;
"Thickness of inner steel sheet"
0.4-0.6mm thickness of galvanized steel sheets or 0.8-1.0mm thickness of aluminum sheets;
"External dimensions"
The composite panel is 1000mm in standard width and can be customized to non-standard widths that is less than 1000 such as 900 or 600 per the demands of customer;
"Anti-corrosion of steel coil substrate"
Galvanized. The standard Zinc content on both sides (g/m2) is 140 / 180 / 275;
Galvanized and aluminized as AZ100, AZ120, AZ150;
"Thickness of composite metal sheet"
40/50/60/75/80/100/150mm or customized per customer demands;
"Steel coil supplier"
Shanghai Baosteel/Australia BHP/ Taiwan Yieh Phui/ Korean Union Steel, etc;
"Coating on outer steel sheet"
PVDF (poly (vinylidene fluoride) type), HDP (high weathering resistance type), SMP (silicon ester type), PE (polyester type);
"Coating on inner steel sheet"
SMP (silicon ester type), PE (polyester type);
"Core material"
PUR high thermal-insulated PU, high-density rock wool;
"Fire-proof performance"
PUR high thermal-insulated PU has fire rating B according to GB8624-1997; has fire rating C according to GB8624-2006.
High-density rock wool has fire rating A according to GB8624-1997; has fire rating A2 according to GB8624-2006.
"End-product protection"

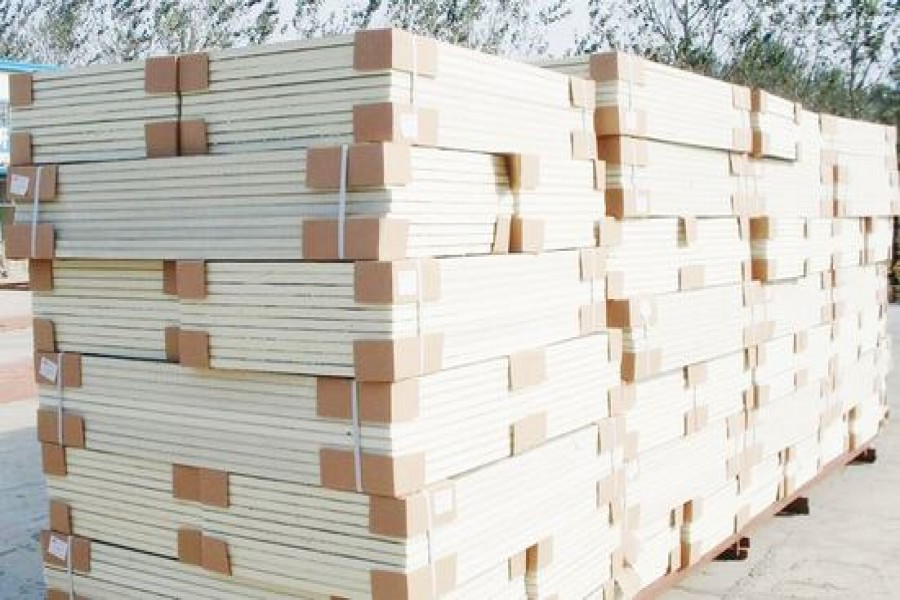

A protective film is applied on the surface of the outer sheet to protect the end product from being scratched. The products are packaged accordingly per the specific conditions before leave factory.
Product features:
In XINXIN PANEL, we develop our panel product systems based on the highest standards. We also provide guidance and references for the design, engineering construction and installing panel system;
Since being put into operations 12 years before, we have never changed our target. That is to manufacture the products trusted 100% by our customers;
Our sandwiched products have been favored by the architects, the designers, the developers and the owners seeking the best construction systems and materials;

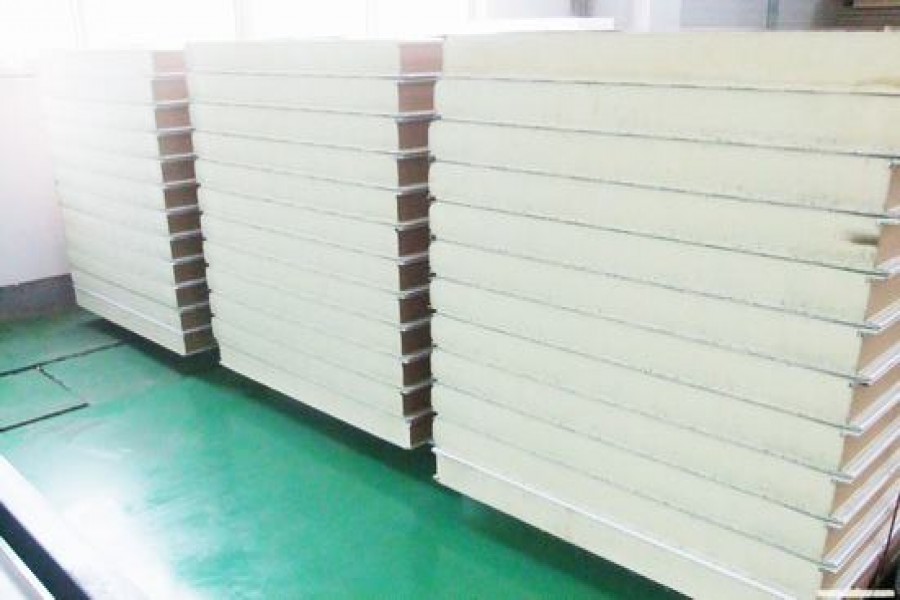

Our composite sandwiched products consist of two layers of molded metal panels (or panels by other materials) and polymer heat-insulated core directly foamed and cured between the panels. These sandwiched end-products are convenient to install with light weight and high efficiency. The filling systems also use a closed bubble structure and can avoid moisture condensation.
The forming of the outer steel sheet takes into full account the requirements of structure and strength as well as aesthetics. The inner surface is formed with embossing to meet various demands.
The metal-faced PU sandwiched sheet has excellent properties and is widely used in various buildings:
1) Industrial plants, warehouses;
2) Office buildings, airport terminals;
3) Gymnasiums, exhibition buildings;
4) Shopping malls, supermarkets;
