Vehicle Restraints

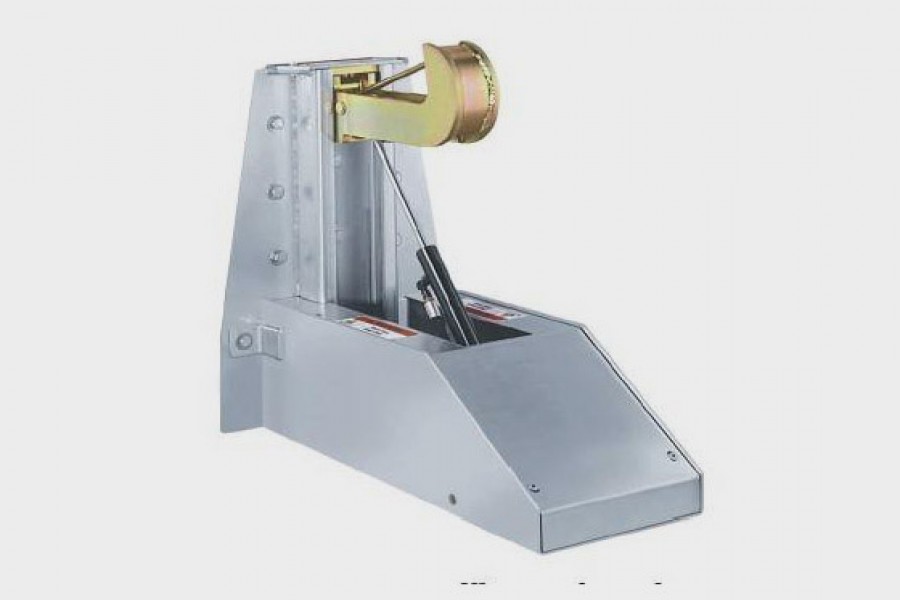

Once the lorry backs to the position of loading / unloading, its tail end will touch and press down the entire steel frame with a built-in spring to allow it to back-up completely against the steel frame. Then the operator presses the control button to hoist up the hook and hook the cross-bar of the lorry tail; The hook could bear a force as high as 16,000Kg. The locking device will also automatically adjust the fixing condition with the cross-bar of the lorry bar to ensure safety per the floating height of the lorry tail during loading and unloading. After the loading or unloading is finished, the operator will press the button again to release the hook. If the lorry deviates from or the cross-bar of the lorry tail isn't at the effective locking position, the locking device will be under wrong working conditions. Then, the alarming device will sound an alarm and warn the operator that the lorry isn't locked normally.
Technical description:
Maximum tension：16000kg
Height range：300mm
Product features:
Safe and reliable
The spring access device ensures that the hook is touch closed with the crash bar of the lorry;
The hydraulic hook is 12mm thick and strong to provide a force as high as 16,000Kg;
The locking device can be adjusted automatically according to the height level of the lorry crash bar without any external force; The hook could hook up the tail bar and the dock lock could be installed under the platform; the spring can move in a vertical direction with the lorry to ensure that the loading process is safe and smooth;
Clear traffic light system gives the lorry driver guidance.
Wide applications
The locking hook can have a 300mm adjustable height, fitting every lorry height.
Less maintenance
The outside oil pipe makes it easy to add oil;
Hydraulic oil tank of transparent plastic material to display the oil level clearly;
Reliable design and parts to ensure the lowest maintenance frequency.
Flexible
PLC control circuit allows selecting additional safe devices (such as photo cell, pressure valve);
I/O communication ports are available to connect the external inter-lock photo cells (such as dock leveler, sectional door etc) and pressure switches.
